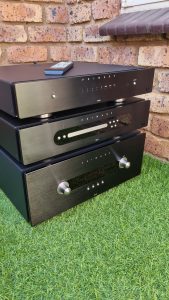

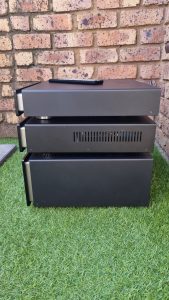

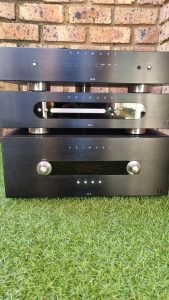

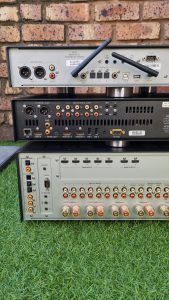

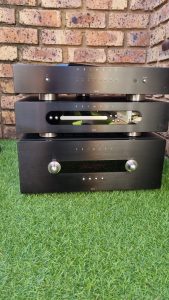

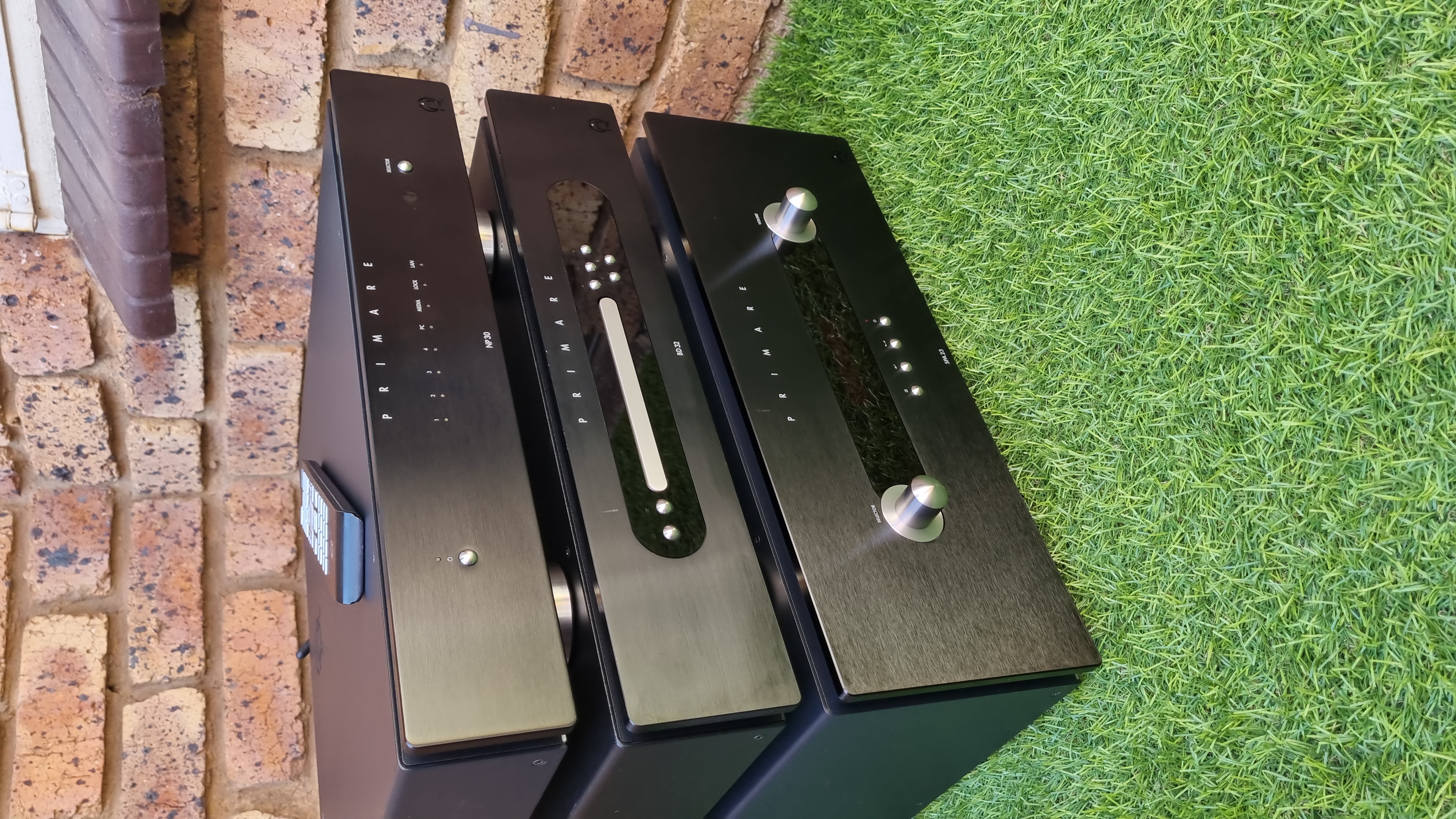

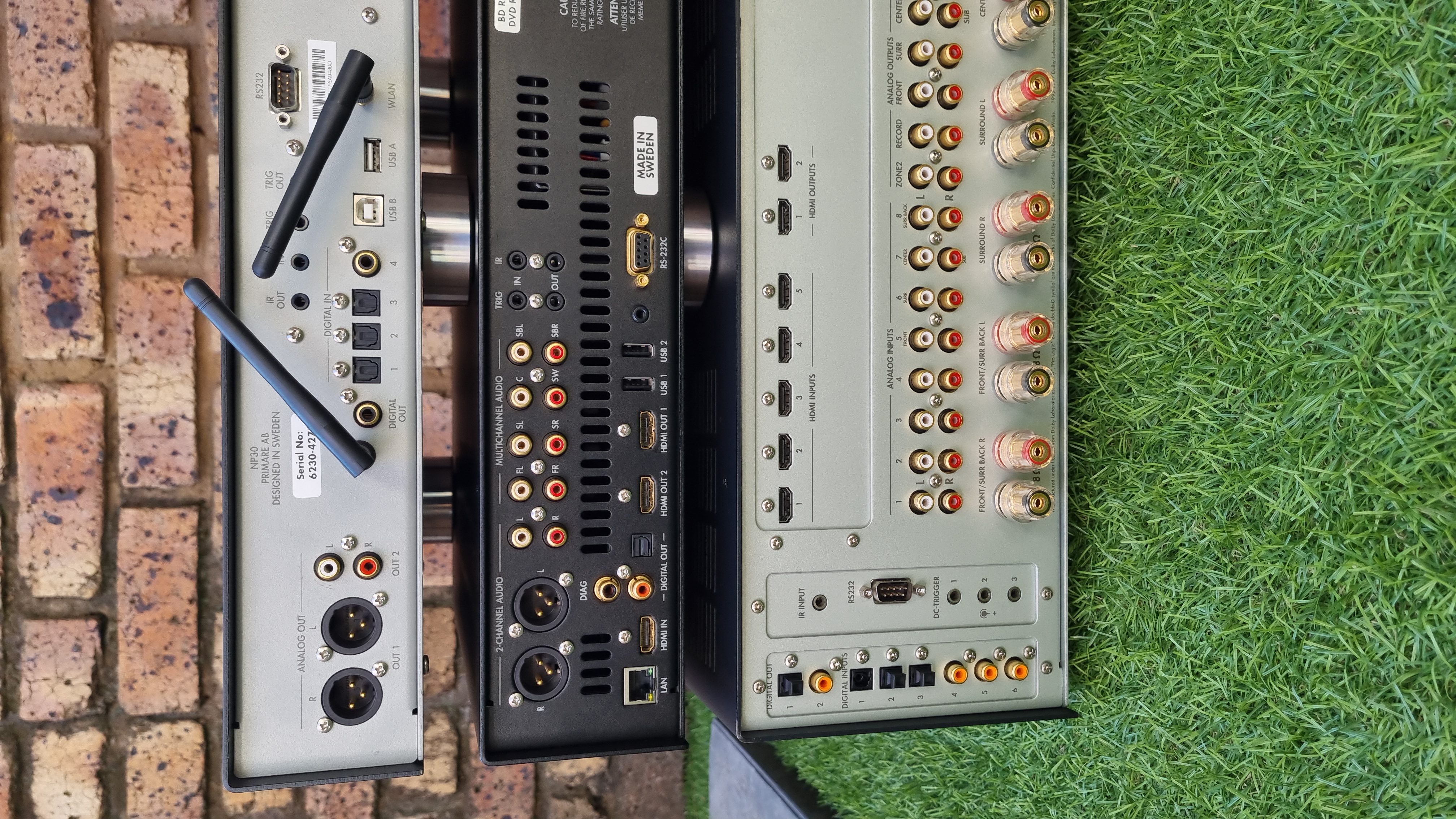

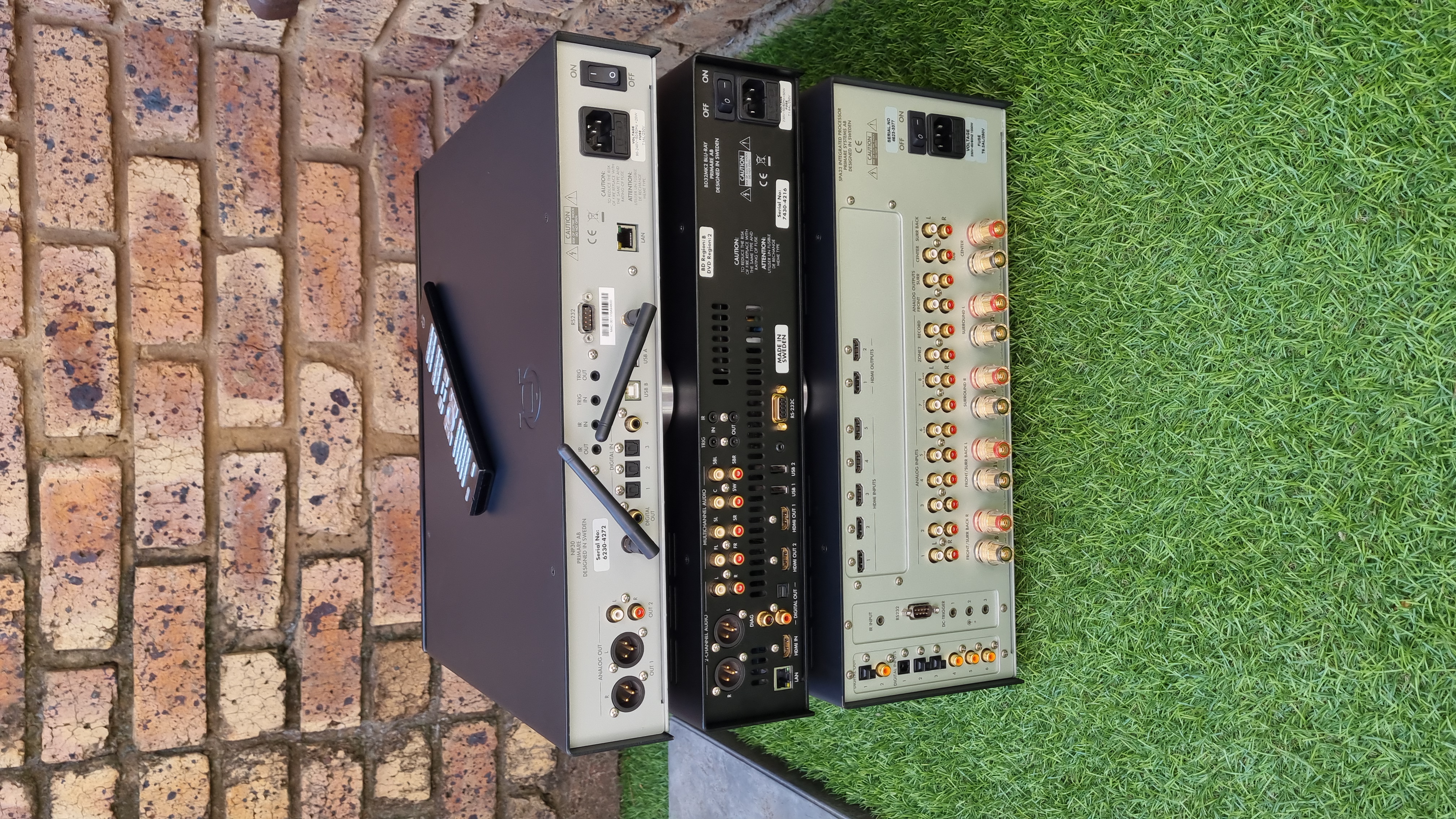

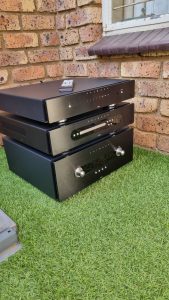

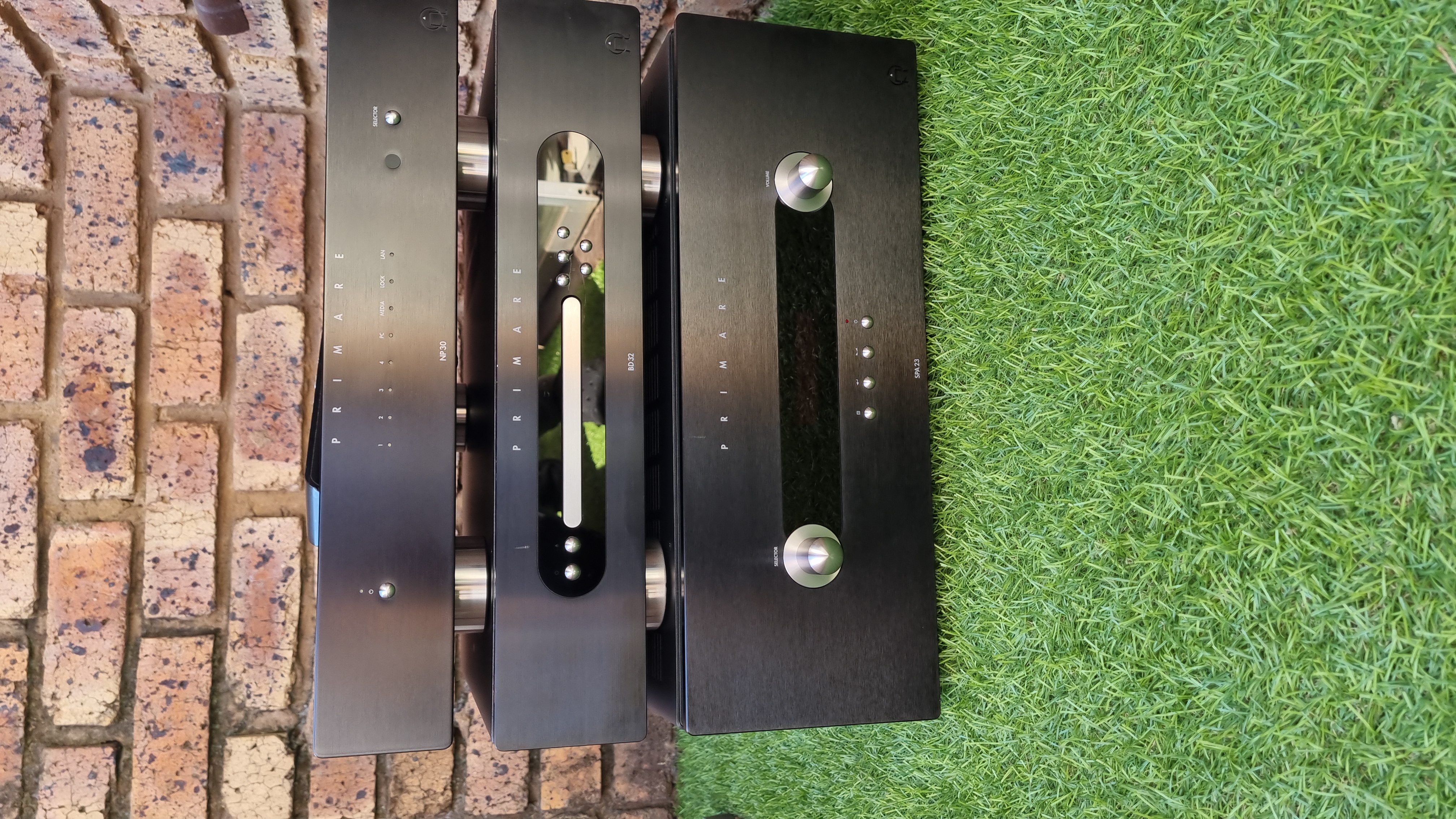

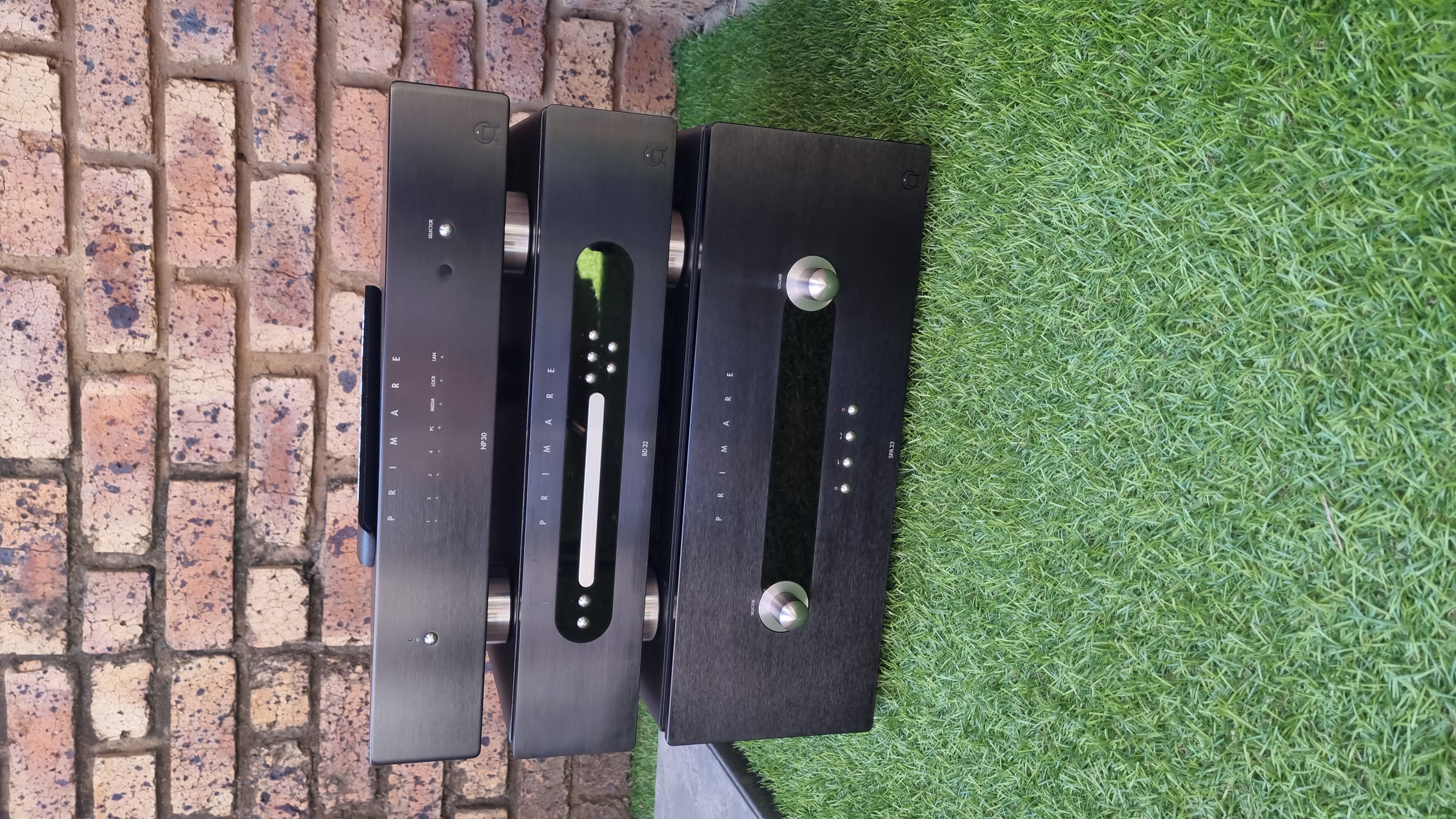

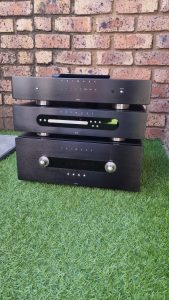

Primare SPA23 Integrated Processer, Primare BD32mkii Universal Disc Player and Primare NP30 Streamer/DAC/PRE in excellent condition (few minor scratches)
Shipping at buyer’s expense and risk.
Please pm me if interested.

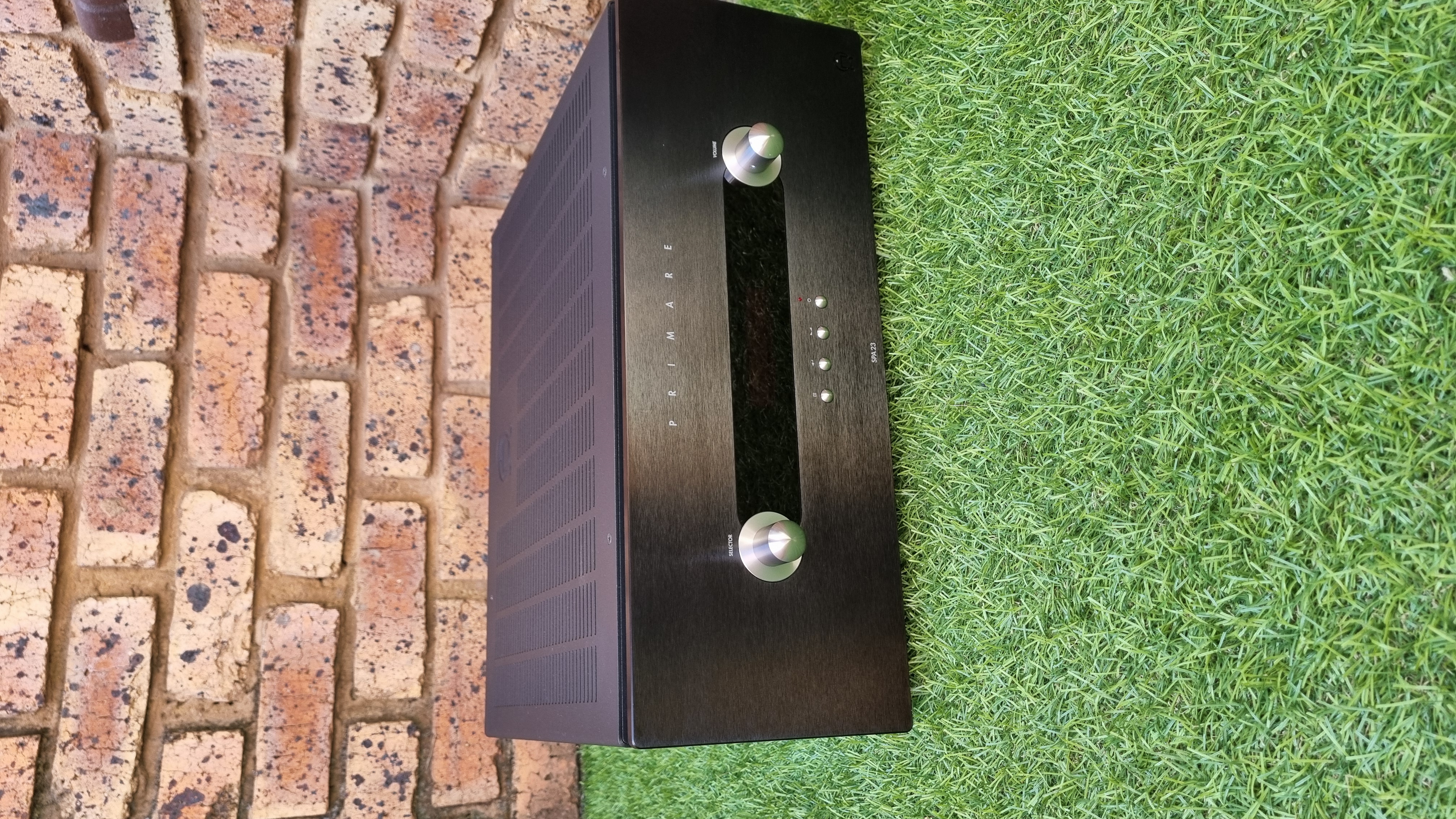

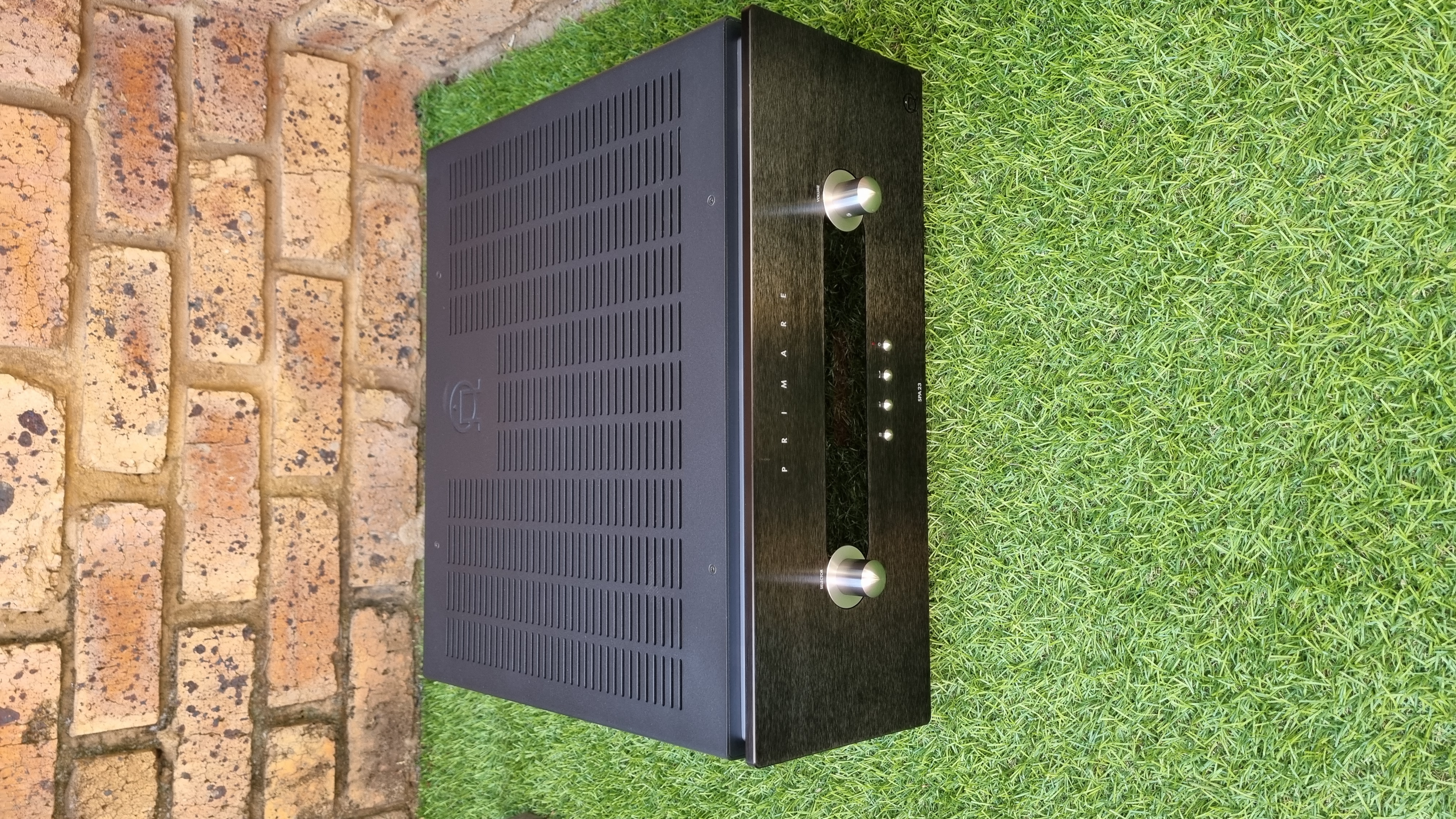

The new SPA23 4KVM AV amplifier is definitively Primare, integrating superior innovation, flexibility and signal purity with an exclusive visual sophistication. Equipped with five identical 120W UFPD amplifiers, HD audio processing, the new 4KVM 4K UHD video module, and a versatile range of analogue and digital audio inputs, the SPA23 will realise the potential of high definition film and music sources.
The SPA23 4KVM performs brilliantly at the centre of your home AV system. Through simple onscreen menus and the new C24 remote supplied you can optimise the performance of every component with ease. Connect all of your sources to the SPA23 and customise each input with a name – ‘Blu-ray’ or ‘cable’ for instance. Then select a surround format for each according to source: Dolby TrueHD or DTS-HD Master Audio would be appropriate for FullHD movies from Blu-ray disc or online sources. Next match the sound of each format to your room with precise adjustments for level, speaker type, crossover frequency, delay and bass management. Fine-tune performance and functionality still further with sensitivity control and 12V trigger activation per input. With all of your sources set-up you can create automatic audio and video associations between them, achieving perfect sound and picture synchronisation every time through the SPA23’s global delay DSP. New 4KVM video circuitry features 4K and 3D video pass-through, with matrix switching facility for six HDMI inputs and two ARC assignable HDMI outputs. All this is possible with fingertip control from the C24 remote. Beyond the handset, compatibility with third party home automation systems is assured through IR and RS232 connections.
Use the SPA23 4KVM with the matching and acclaimed BD32 MKII universal player, with 4K upsampling, and add the A34.2 two-channel power amplifier for full seven channel surround.
Output power 5 X 120W 8Ω
Analogue Inputs 8 RCA, incl. 7.1 inputs
Digital Inputs 3 RCA, 3 TOS-Link
Video Inputs 6 HDMI, with matrix switching
Analogue Outputs Front (left and right), Centre, Sub, Surr (left and right), Surr back (left and right)
Analogue Record Output 1 RCA (left and right)
Zone2 Output 1 RCA (left and right)
Digital Output 1 RCA, 1TOS-Link
Video Output 2 HDMI, with assignable ARC
Zone 2 1 RCA (left and right)
Modes Stereo, Bypass, Party, Dolby Prologic IIx Music, Dolby Prologic IIx Movie, DTS NEO:6 MUSIC, DTS NEO:6 CINEMA Decoding Formats Dolby Digital, Dolby Digital EX, Dolby Prologic II, Dolby Prologic IIx, Dolby EX, Dolby Plus, Dolby TrueHD, DTS, DTS ES, DTS Neo:6, DTS 96/24, DTS HDMaster Audio, DTS HD High Res audio, MULTI/2 CH PCM/LPCM
Sampling rates 32KHz,44.1KHz,48KHz, 88.2KHz,96KHz,192KHz
Video HDMI HDCP 2.2 with 4K and 3D pass-thru, and HDMI OSD
Other out-/inputs 1 IR Input, 3 12v outputs (triggers), 1 RS232,
Fully stabilized SMPS
Power Consumption operate 800W at 1K, 8R ,120W all channels driven
Analogue Preamp Data THD <0.005%, 20 Hz-20kHz
Signal-to-Noise -110 dB
Frequency Response 10 Hz-100 kHz, 1dB Input
Impedance 47 KΩ, unbalanced
Output Impedance 47 R unbalanced
Power Amp Data
Output power 1Khz, 8R 150W THD+N <1% one channel driven 4R 300W THD+N <1%, AP AUX0025 Filter Output power 1Khz, 120W 4/8R THD+N <0.1% all channels driven AP AUX0025 Filter THD <0.01% 20-20Khz 1W 8R, AP AES17 Filter Signal-to-noise 80dBr, AP AES17 filter, ref 2.828Vrms.
Frequency Response 20 Hz-20 kHz -0.2dB, 1W 8R
Digital Data
Frequency Response 20 Hz-20 kHz+ 0.2dB THD+Noise 0,005% @1 kHz(AES17 filter) Dimensions (WxDxH) 430 x 385 x 180 mm
Weight 15Kg
Colour options Black or Titanium
Primare NP30 streamer/DAC/PRE
DAC and audio
- DAC: Burr-Brown PCM1792 24-bit/192kHz
- Sample rate: Supports up to 24-bit/192kHz, with upsampling to 24/192 for all incoming signals to optimize DAC performance, according to Primare’s design brief
- File support: WAV, AIFF, FLAC, MP3, WMA, OGG, and ALAC
- Signal-to-noise ratio:
120dB120 d cap B
- Digital jitter: <10 psec (S/PDIF/USB) and <20 psec (network)
- Audio output: Maximum output level of
2.07VRMS2.07 cap V sub cap R cap M cap S end-sub
(balanced), distortion of0.005%0.005 %
at1kHz1 k cap H z
, and a frequency response of20Hz−20kHz±0.2dB20 cap H z minus 20 k cap H z plus or minus 0.2 d cap B
- Connectivity and inputs/outputs
- Network: Wi-Fi (WLAN) and Ethernet (LAN)
- Digital inputs: 3x Optical, 1x SPDIF, 1x USB-A, 1x USB-B
- Digital outputs: 1x Optical, 1x SPDIF (AES/EBU), 1x RCA, 1x XLR
- Control: IR in/out, 12V trigger in/out, and an RS232 port for external control
- Bluetooth: An aptX Bluetooth upgrade was available
Physical specifications
- Dimensions:
430×95×370430 cross 95 cross 370
mm (WHD) - Weight:
8.5kg8.5 k g
- Power consumption:
13W13 cap W
(1W standby)
Primare BD32mkii Universal Disc Player (4k upscaling)
Specifications
Designs and specifications are subject to change without notice.
Disc Types* BD-Video, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, HDCD,
Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
BD Profile BD-ROM Version 2.5 Profile 5 (also compatible with Profile 1 Version 1.0 and 1.1)
Internal Storage 1GB (Actual space available for persistent storage varies due to system usage)
Output Analog Audio: 7.1ch, 5.1ch, stereo.
Coaxial/Optical Audio: up to 2ch/192kHz PCM, Dolby Digital, DTS.
HDMI Audio: up to 7.1ch/192kHz PCM, up to 5.1ch DSD, Dolby Digital, Dolby Digital
Plus, Dolby TrueHD, DTS, DTS-HD High Resolution and DTS-HD Master Audio.
HDMI Video: 480i/480p/576i/576p/720p/1080i/1080p/1080p24/4Kx2K, 3D frame-
packing 720p/1080p24.
Input HDMI Audio: up to 5.1ch/192kHz or 7.1ch/96kHz PCM, Dolby Digital, Dolby Digital
Plus, DTS and AAC.
HDMI Video: 480i/480p/576i/576p/720p/1080i/1080p/1080p24/1080p25/1080p30, 3D
frame-packing 720p/1080p24.
MHL Audio: up to 5.1ch/192kHz PCM, Dolby Digital, Dolby Digital Plus, DTS.
MHL Video: 480i/480p/576i/576p/720p/1080i/1080p24/1080p25/1080p30, 3D frame-
packing 720p/1080p24.
CD performance Freq resp -0.19dB @20K; THD+N 1K 0dBFS (22K LPF) 0.0015%; Noise A-weighted.
-138dBV
SACD (DSD)
performance
Freq resp -0,17dB @20K; THD+N 1K 0dBFS (22K LPF) 0.0055%; Noise A-weighted.
-125dBV
Analogue outputs 1 pair Stereo XLR (4,4Vrms) and 1 pair RCA (2,2Vrms), 1 multichannel 7.1 RCA input
Digital outputs 1x SPDIF (RCA); 1x optical (TOS-link), 2x HDMI
Connections HDMI input, USB-A , LAN, IR in/out 3.5mm; RS232; Trigger in/out 3.5mm
D/A converter Crystal DSD DAC CS4398
Output impedance RCA 100Ω; XLR 110Ω
Power consumption Standby 0,5W, Idle 37W, Operation 50W
Dimensions 430 x 375 x 106 mm
Weight 10kg
Colour options Black or Titanium
Operating Temperature 41°F – 95°F, 5°C – 35°C
Operating Humidity 15% – 75% No condensation
* Compatibility with user-encoded contents or user-created discs is on a best effort basis with no
guarantee due to the variation of media, software.
