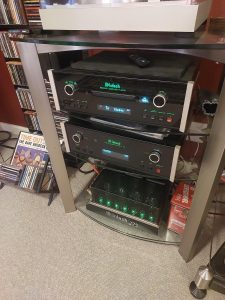

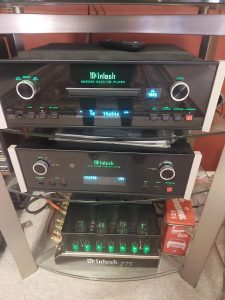

McIntosh Set for sale (Mc275 / C49 / MCD550)
MC275 MK6 – SPECIFICATIONS
McIntosh MC275 – 2-Channel Vacuum Tube Amplifier 75W/ch
Power Output per Channel – 75W @ 4, 8 or 16 Ohms
Number of Channels – 2
Total Harmonic Distortion – 0.5%
S/N below rated output – 105dB
Dynamic Headroom – 1.2dB
Damping Factor – >22
Rated Power Band – 20Hz to 20kHz
Frequency Response
- +0, -0.5dB from 20Hz to 20,000Hz
- +0, -3.0dB from 10Hz to 100,000Hz
CONTROL
Remote Power Control – Yes, input and output
Multi-Channel DB25 Cable – N/A
GENERAL SPECIFICATIONS
Circuit Configuration – Unity Coupled
Circuit Design – Vacuum Tube
Mono Bridge – No
Mono Parallel – Yes, 150W @ 2, 4 or 8 Ohms
Output Type – Unity Coupled Output Transformer
Meters – No
Meter Light Switch – Small signal tubes LEDs controlled by McIntosh preamp

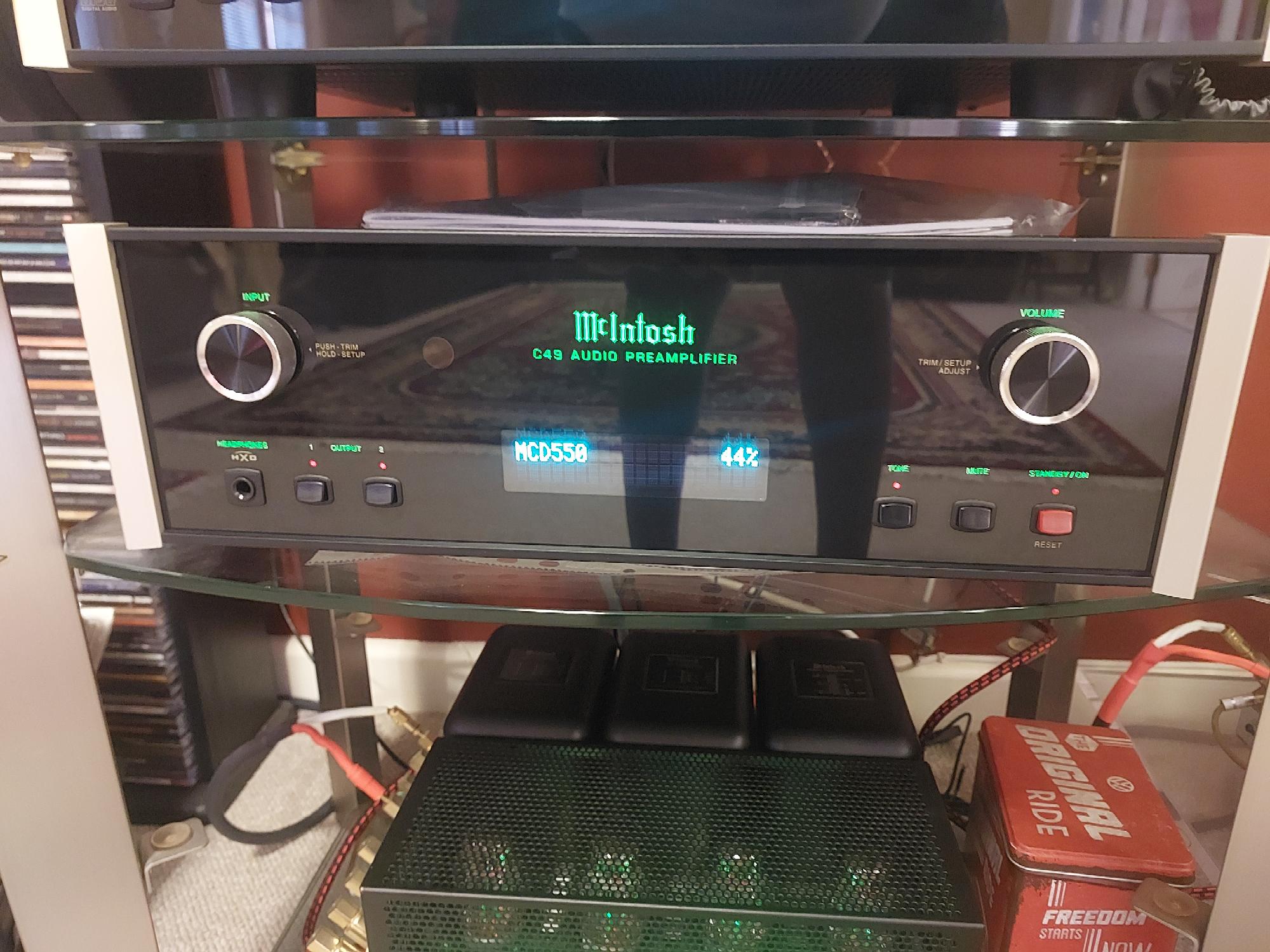

MCINTOSH C 49 2-CHANNEL SOLID STATE PREAMPLIFIER
FEATURES:
- 2 Balanced Inputs
- 3 Unbalanced Inputs
- MC & MM Phono Inputs
- 2 Balanced Outputs
- 3 Unbalanced Outputs
- DA1 Digital Audio Module with 6
- inputs: 2 Optical & 2 Coax (24-bit/192kHz), 1 USB (32-bit/384kHz), 1 MCT DSD256 and DXD 384kHz support
- 8-channel, 32-bit/192kHz DAC used in Quad Balanced mode
- Front Panel Headphone Jack with Headphone Crossfeed Director (HXD®)

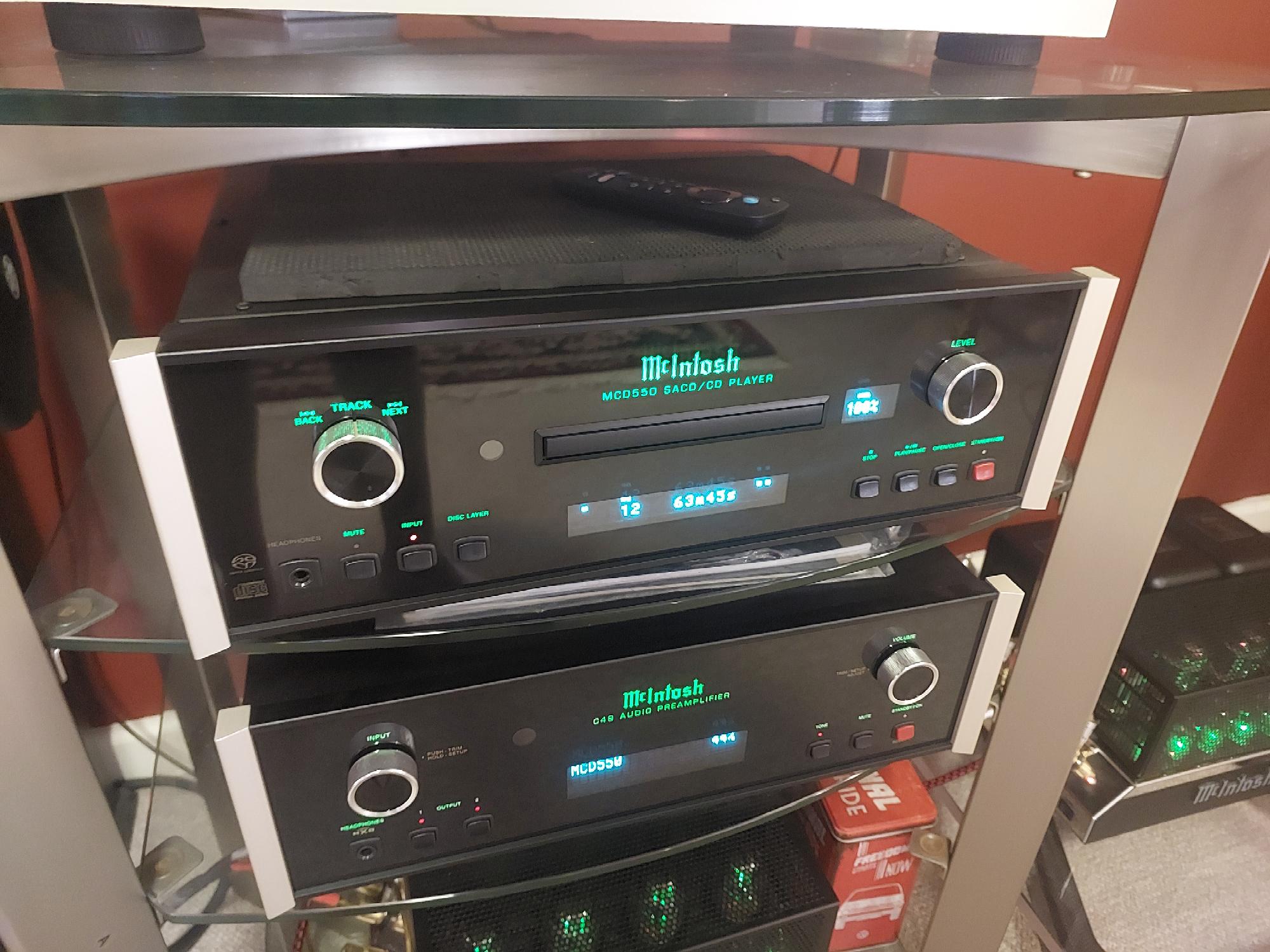

McIntosh MCD550 SACD Player
McIntosh MCD550 2-Channel SACD/CD Player | Pre-Owned
Description
The MCD550 utilizes an 8-channel, 32-bit/192kHz PCM/DSD digital-to-analog converter (DAC) with a wide dynamic range and extremely low distortion. The 8-channel DAC is used in Quad Balanced mode, which utilizes 4 DAC channels per audio channel, allowing music at all levels to be reproduced with extreme precision and elegance. It can decode PCM signals from CDs and the digital inputs, and DSD signals from SACDs.
“The McIntosh Labs MCD550 is one of the most musically engaging players that I have heard. It gives a performance that is refined and polished to the highest order… It breathes new life into CDs and brings out the best in SACDs.” Winner of an Outstanding Product Award. – The Speaker Shack
Both fixed and variable balanced and unbalanced outputs are present, offering you extreme flexibility in connecting the MCD550 to your system. The variable outputs allow for a direct connection to an amplifier without requiring a separate preamplifier. Also available are three digital inputs: a coax, an optical, and a USB input that allows for direct streaming of computer-stored music at up to 24-bits and 192kHz. Coax and optical outputs are available if you want to send the audio signal to a preamplifier or home theater processor.
